LMX-C602G-SFP-T-V2
6-Port Industrial Compact Gigabit Light Layer 3 Managed Ethernet Switch, with 4*10/100/1000Tx and 2*100/1000 SFP Slots; EOT: -40°C to 75°C

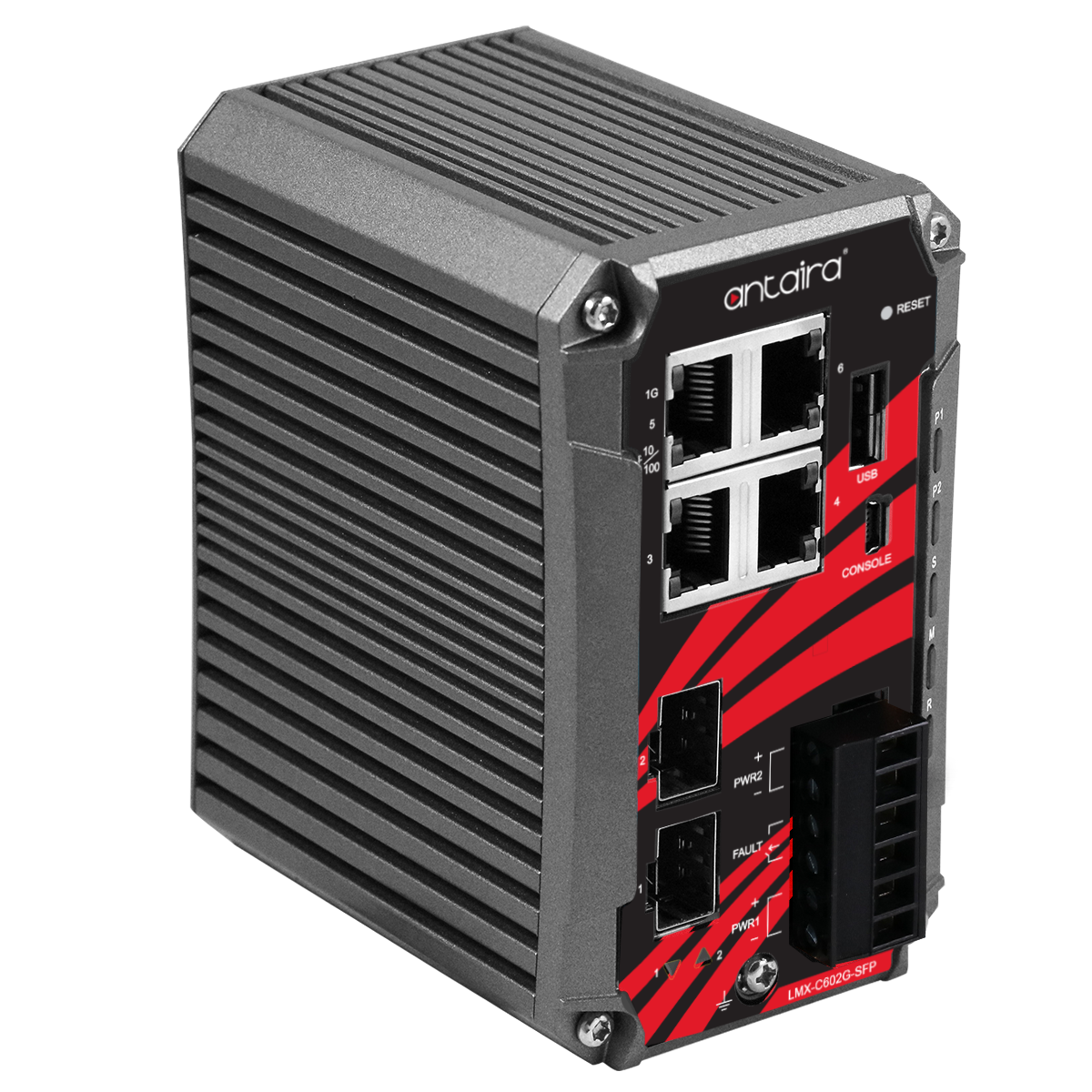

Overview of the Antaira LMX-C602G-SFP-T-V2 Compact 6-Port Industrial Ethernet Switch
$1,177.00
Overview
Antaira Technologies’ LMX-C602G-SFP-T-V2 is a 6-port industrial compact Gigabit managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports and 2*100/1000Fx dual rate SFP slots for fiber connection. The LMX-C602G-SFP-T-V2 is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.
The LMX-C602G-SFP-bt-T-V2 is IP40 rated and DIN-rail mountable. There are also an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment. With a compact form and all connections facing the front of the Ethernet switch making it easy viewing of installations in a reserved space.
Features
- Supports 4*10/100/1000Tx Fast Ethernet Ports and 2*100/1000 SFP Slots
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Configuration: Web Console, Telnet, CLI Command
- Supports IGMP v1/v2/v3, up to 1024 Groups
- Supports QoS (IEEE802.1p) and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c
- Power Input: 12~48VDC in 6-Pin Terminal Block
- Reverse Polarity Protection
- IP40 Protection
- DIN-Rail or Wall Mountable
- Operating Temperature Range – EOT: -40°C to 75°C
- 5-Year Warranty
