5-Port Industrial Unmanaged Ethernet Switch, w/4*10/100/1000Tx + 1*100/1000 SFP Slot; EOT: -40~75C

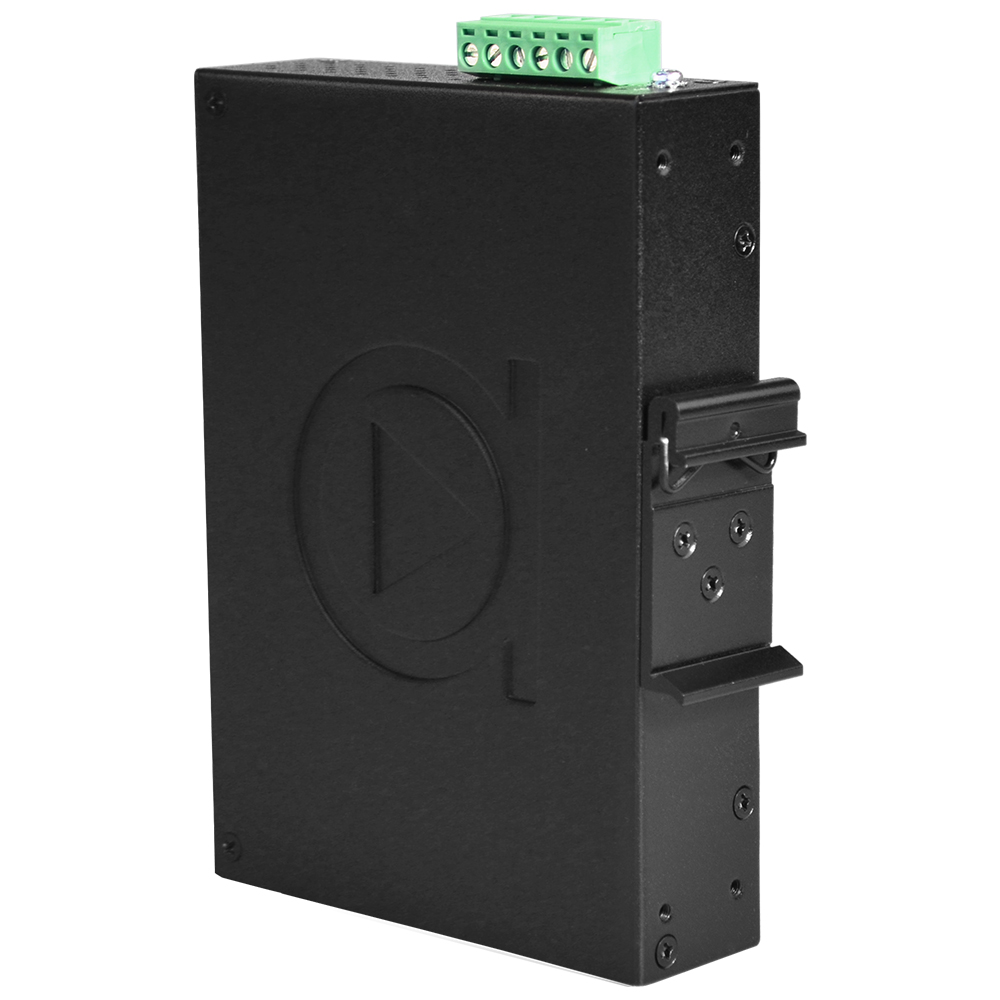

Overview of the Antaira LNX-0501G-SFP-T 5-Port, Industrial Unmanaged Switch
5-Port Industrial Unmanaged Ethernet Switch w/ 1 Fiber | Antaira
To request more information regarding our products, please fill out the following online form and a customer service
representative will contact you immediately. Fields marked (*) are required. Thank you.
Request Volume Pricing
To request volume pricing of any of our products, please fill out the following online form and a customer service representative will contact you immediately. Fields marked (*) are required. Thank you.
Antaira’s LNX-0501G-SFP-T industrial gigabit unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. Each unit is designed with four gigabit Ethernet ports and one dual rate (100/1000) SFP slot, making it ideal for applications that demand high bandwidth and long distance communication.
The LNX-0501G-SFP-T provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection.
In addition, the built-in relay warning function alerts maintainers when power failures or port breaks occur, plus the built-in advanced broadcast storm protection feature will block any data packet that exceeds a defined limit when it arrives to a port, until the rate decreases to a lower threshold.
The LNX-0501G-SFP-T series includes two models: one with an operating temperature range of -10 to 70°C, and the other one with an extended operating temperature range of -40 to 75°C. It is a perfectly design product to fulfill any special needs for industrial automation, outdoor applications and harsh weather environments.
- Network Broadcast Storm Protection
- 4*10/100/1000Tx Fast Ethernet Ports & 1*100/1000 SFP Slot
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 10Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection: 3,000 VDC Support
- ESD Protection: 6,000 VDC Support
- UL Class I, Division 2 Certified
- Redundant Power Input Design – 12~48VDC
- Built-in 1 Relay Output for Port Break Alarm
- IP30 Rugged Aluminum Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - EOT: -40° to 75° C
- 5-Year Warranty
Industrial unmanaged Gigabit Ethernet switches are network devices specifically designed for use in industrial environments where harsh conditions and high reliability are required. These industrial switches provide a means of interconnecting various industrial devices, such as PLCs (Programmable Logic Controllers), sensors, motors, and other equipment, within an industrial automation network. While the term "100 GbE switch" refers to high-speed switches capable of handling data rates up to 100 gigabits per second (Gbps), industrial unmanaged switches typically operate at lower speeds, such as 1 Gbps, to meet the requirements of industrial applications. This makes Antaira’s gigabit switch line ideal for handling large amounts of data quickly and efficiently.
A 16-port network switch in an industrial context indicates that the switch has 16 individual ports available for connecting industrial devices. Each port serves as a point of connection for a network cable, enabling communication and data exchange between industrial equipment. An unmanaged switch in an industrial setting operates similarly to its counterparts in other environments. It is a plug-and-play device that requires no configuration or management. This simplicity of operation is essential in industrial applications, where ease of deployment and maintenance is crucial. A 1 Gb switch, also known as a Gigabit Ethernet switch, is commonly used in industrial networks to provide high-speed data transfer and improved network performance. These switches offer sufficient bandwidth to handle the demanding data requirements of industrial applications.
Industrial Managed switches, in contrast to unmanaged switches, provide advanced features like VLAN configuration, QoS prioritization, and remote management capabilities. However, in industrial environments, unmanaged switches are often preferred due to their ruggedness, reliability, and simplicity. Industrial networks may have unique requirements, and the straightforward connectivity provided by unmanaged switches is often sufficient for their needs.
In summary, industrial unmanaged Gigabit Ethernet switches are rugged network devices designed for use in harsh industrial environments. They operate at speeds of 1 Gbps, provide a fixed number of ports (such as 16 ports), and require no configuration or management. These switches offer reliable connectivity for industrial devices and are favored for their simplicity and robustness in demanding industrial automation networks. Antaira's industrial switches are designed to provide users with a seamless experience and uninterrupted connectivity.
