MSC-102B1L
2-Port RS-422/485 Low Profile Universal PCI Card

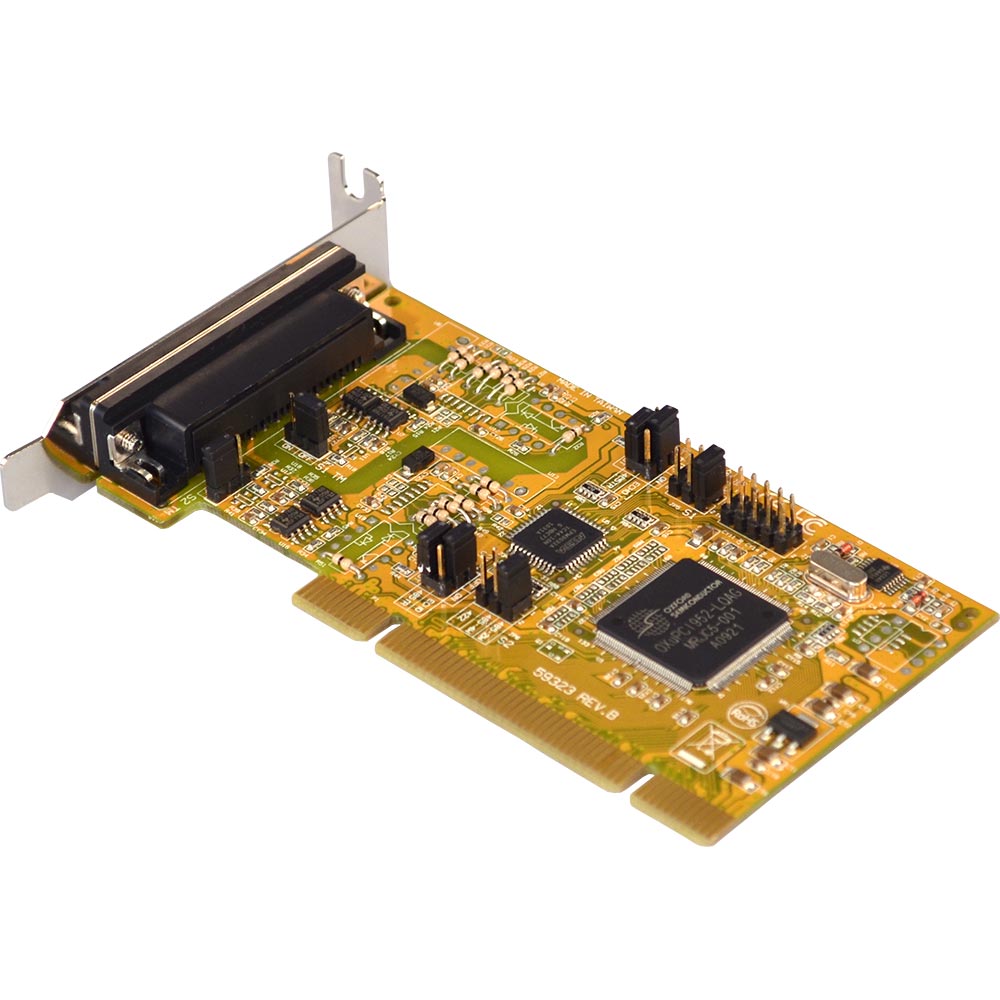

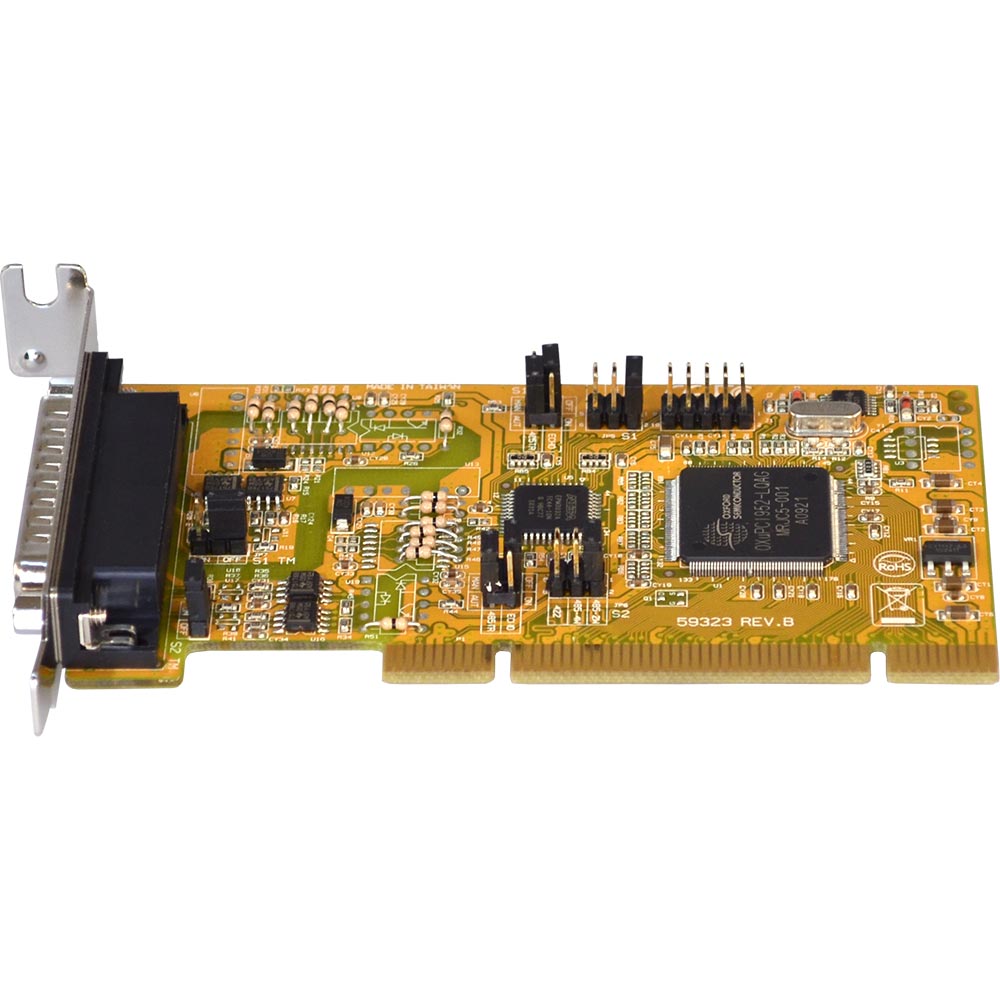

Overview of the Antaira MSC-102B1L 2-Port Serial Expansion Card
$104.00
Overview
Antaira Technologies MSC-102B1L is a low profile RS-422/485 PCI card, designed for the PC workstation as either a client or server. Capable of providing instant 2 port serial port expansion via the PCI bus.
The MSC-102B1 is compatible with new and legacy RS-422/485 devices. With easy installation and use with its plug-and-play feature. The MSC-102B1L provides the scalability to quickly adapt to new serial technologies and I/O devices.
With the PCI Plug-and-Play feature and drive, simply follow the Install Wizard and you are done. The Install wizard will recognize the device upon connection and install the drivers automatically. The MSC-102B1L will have two DB9 male connectors that are suitable for both 4-wire RS-422/485 and 2-wire RS-485 applications.
Features
- Two 16C950 UART Serial Ports over PCI Slot
- PCI Specification 3.0 Compliant, 133MB/S Bandwidth
- Supports RS-485 Auto Transceiver Turn Around by Unique Featured ATTA?v Hardware
- Supports Low Profile Form Factor with Short Bracket
- Two DB9-male Connectors over Octopus Cable
- 4-wire RS-422/485 and 2-wire RS-485 applications
- RS-422/485 speed up to 921.6Kpbs
- Optional DB9 to 5-pin Terminal Block Adapters
