LMX-1604G-4XS
16-Port Industrial Gigabit Layer 3 Managed Ethernet Switch, with 12*10/100/1000Tx and 4*1G/2.5G/10G SFP Slots; 12~48VDC Power Input
$3,229.00
Overview

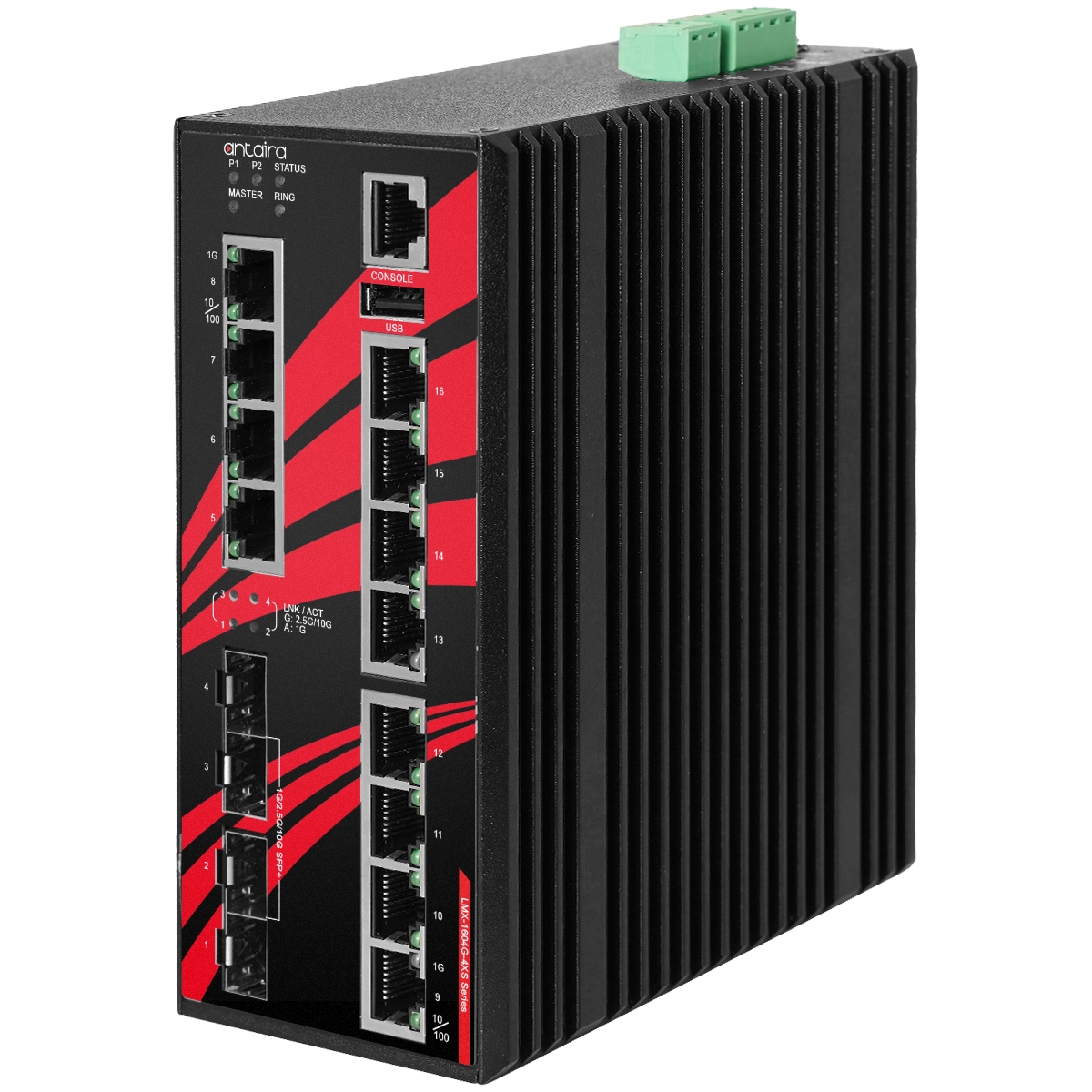

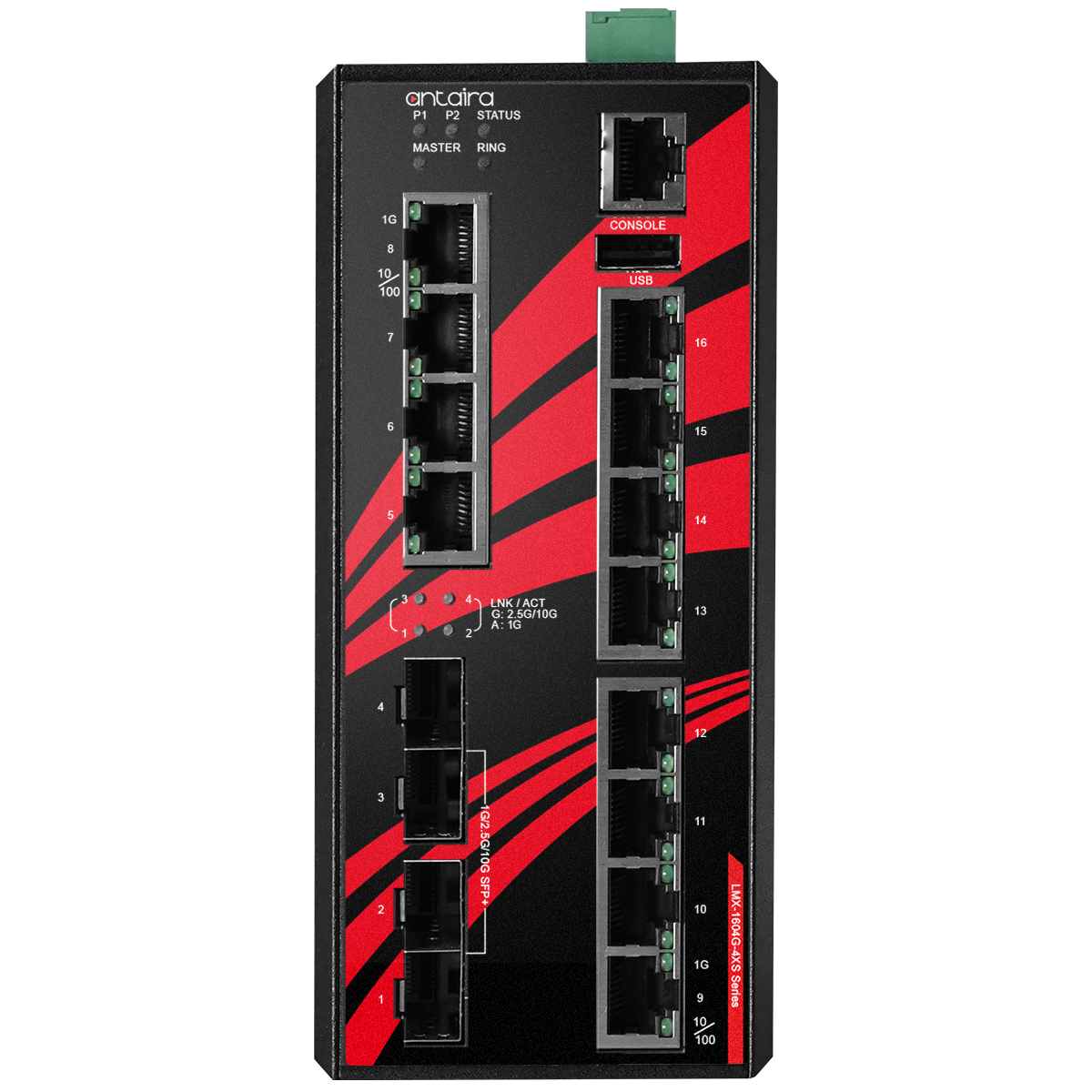

Antaira Technologies’ LMX-1604G-4XS is an 16-port managed Gigabit Ethernet switch embedded with 12*10/100/1000T Ethernet ports and 4*1G/2.5G/10G SFP+ slots for fiber connection. It is a fully manageable layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.
LMX-1604G-4XS is IP30 rated and DIN-rail mountable. It supports standard operating temperature from -10°C to 65°C. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment. With a compact form and all connections facing the front of the Ethernet switch making it easy viewing of installations in a reserved space.
Features
- Support 12*10/100/1000BASE-T Gigabit
- Support 4*1G/2.5G/10G SFP+ Slots
- ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) Protocol
- IEEE 802.1D STP (Spanning Tree Protocol), IEEE 802.1w RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
- Static Routes, ARP, NAT
- SNMPv1/v2c/v3, RMON, Modbus TCP, and HTTP/HTTPS
- RADIUS, TACACS+, 802.1X Authentication
- ACL, IP Source Guard
- VLAN, QoS,and, SNMPv3
- IP30 Rugged Metal Case Design

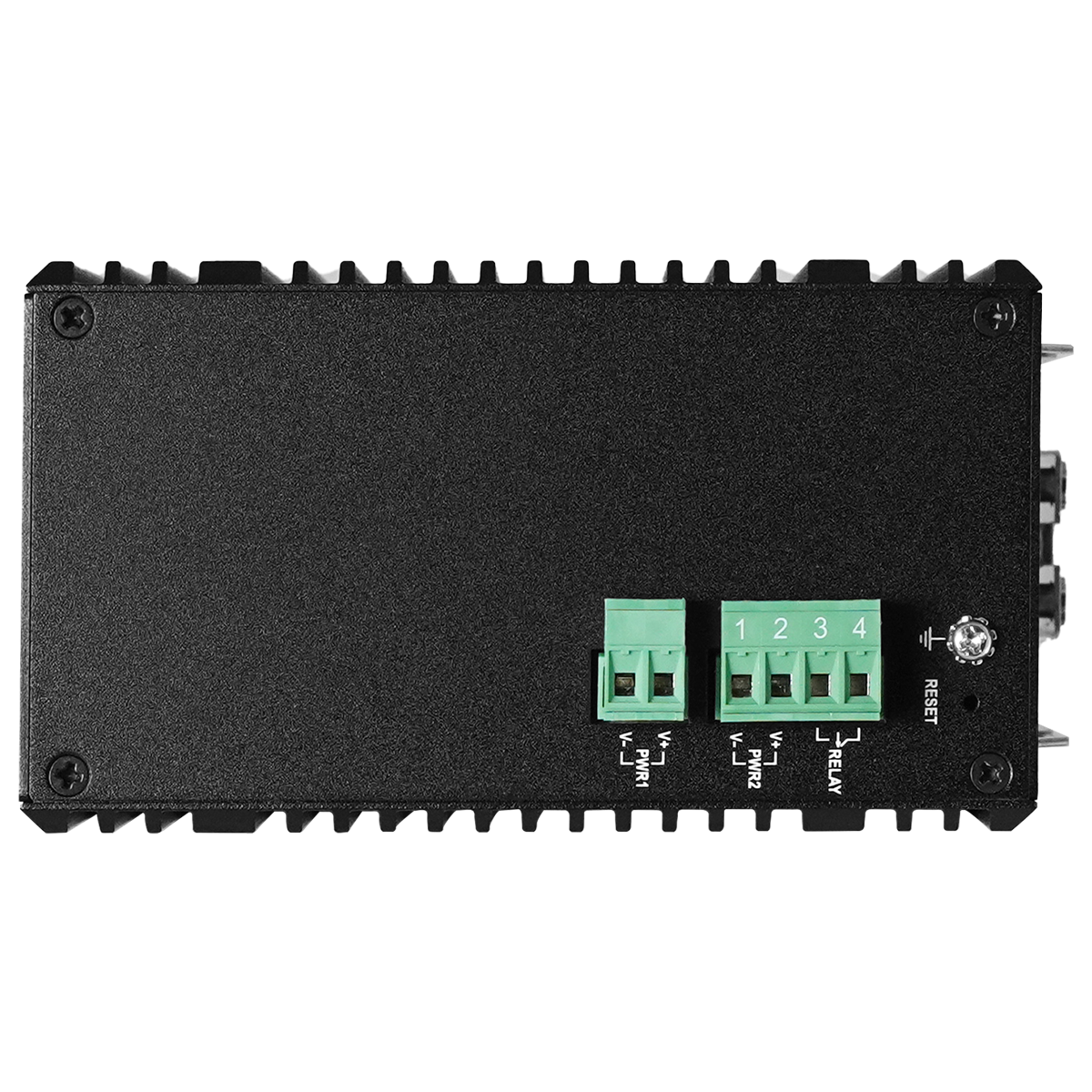

- Redundant Power Input
- Fanless Operation
- Power Reverse Polarity Protection
- High EFT and ESD Protection
- Operating Temperature Range - STD: -10° to 65°C
- NDAA and TAA Compliant
- 5-Year Warranty
Download

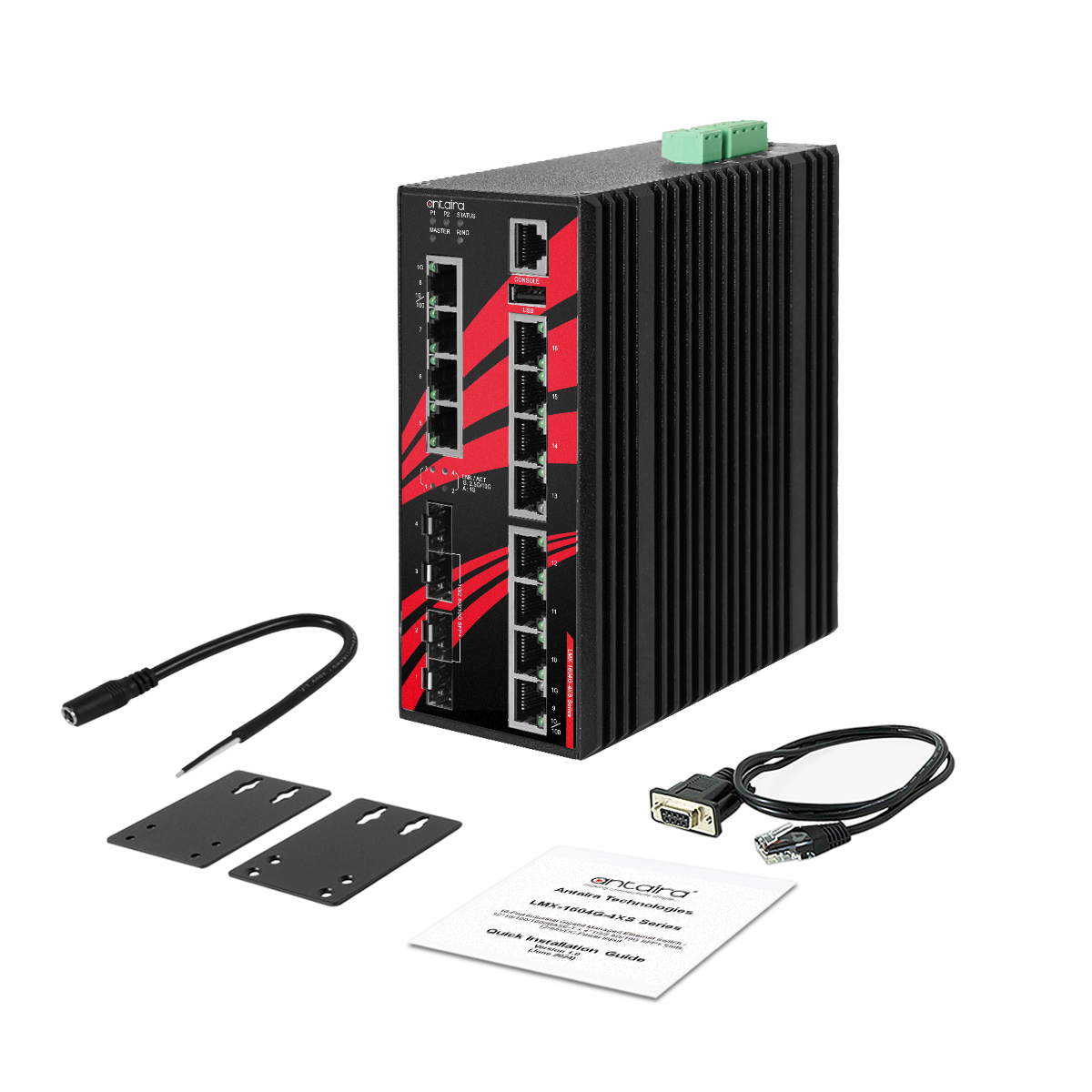

Included
