AIROLINX-GOMAX-BASE-IP67-T
BASE Unit for Airolinx Go MAX Kit (AIROLINX-GOMAX-KIT-IP67-T), Use to create PtMP Networks out of PtP Kits, Industrial Outdoor IP67, Wi-Fi 6 (802.11a/n/ac/ax), with 802.3at PoE PD, USA/Canada Model, EOT: -40°C to 75°C
$1,199.00
Overview

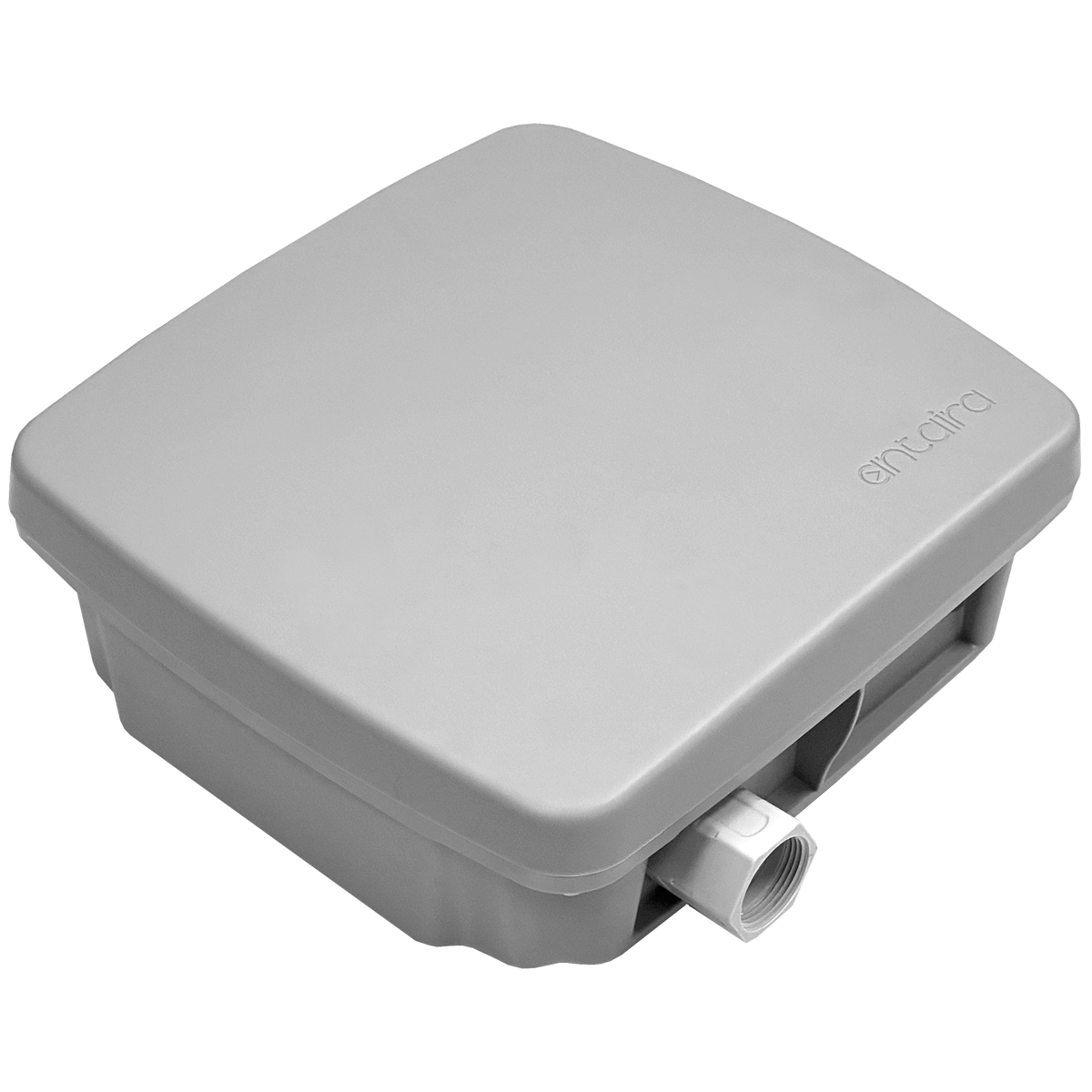

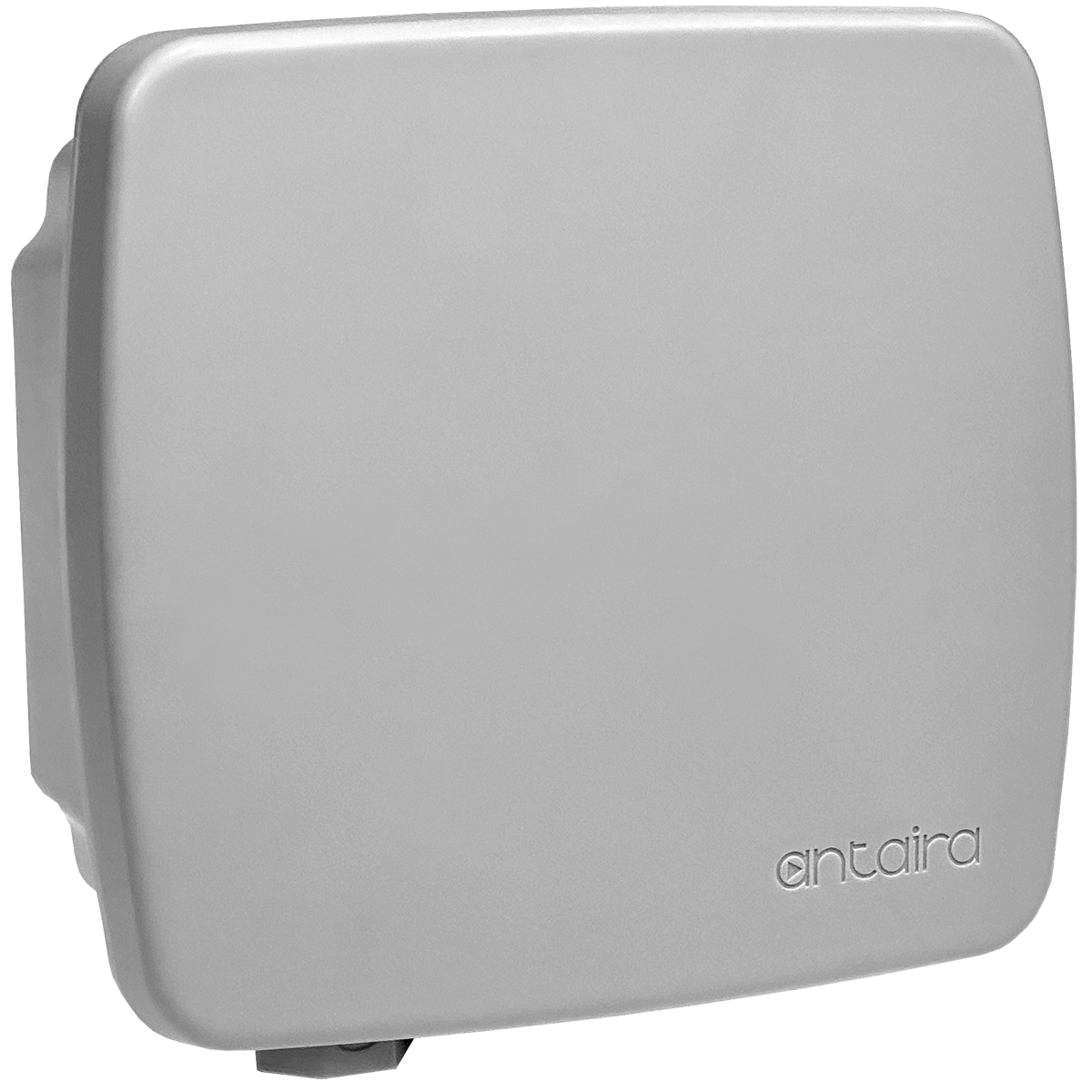

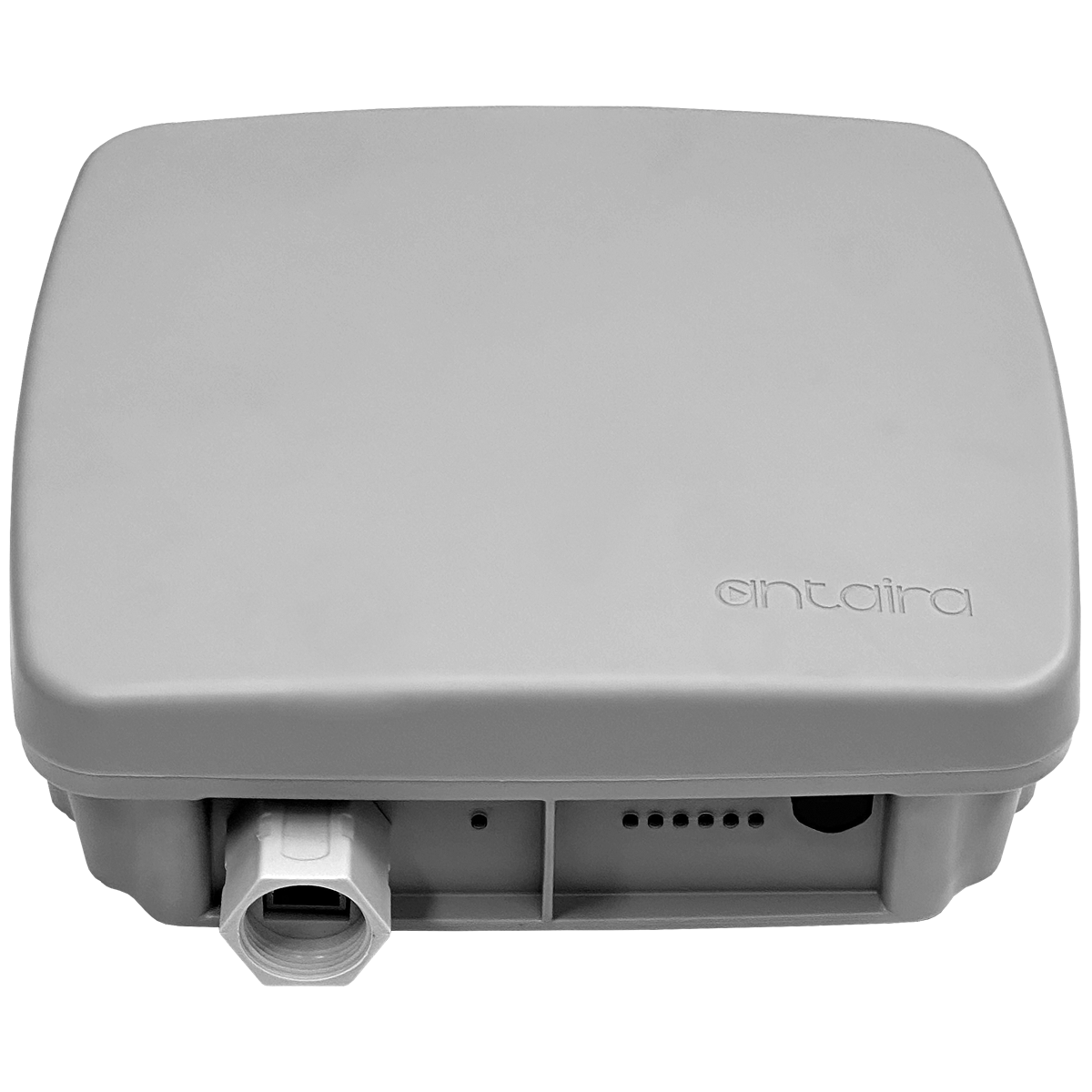

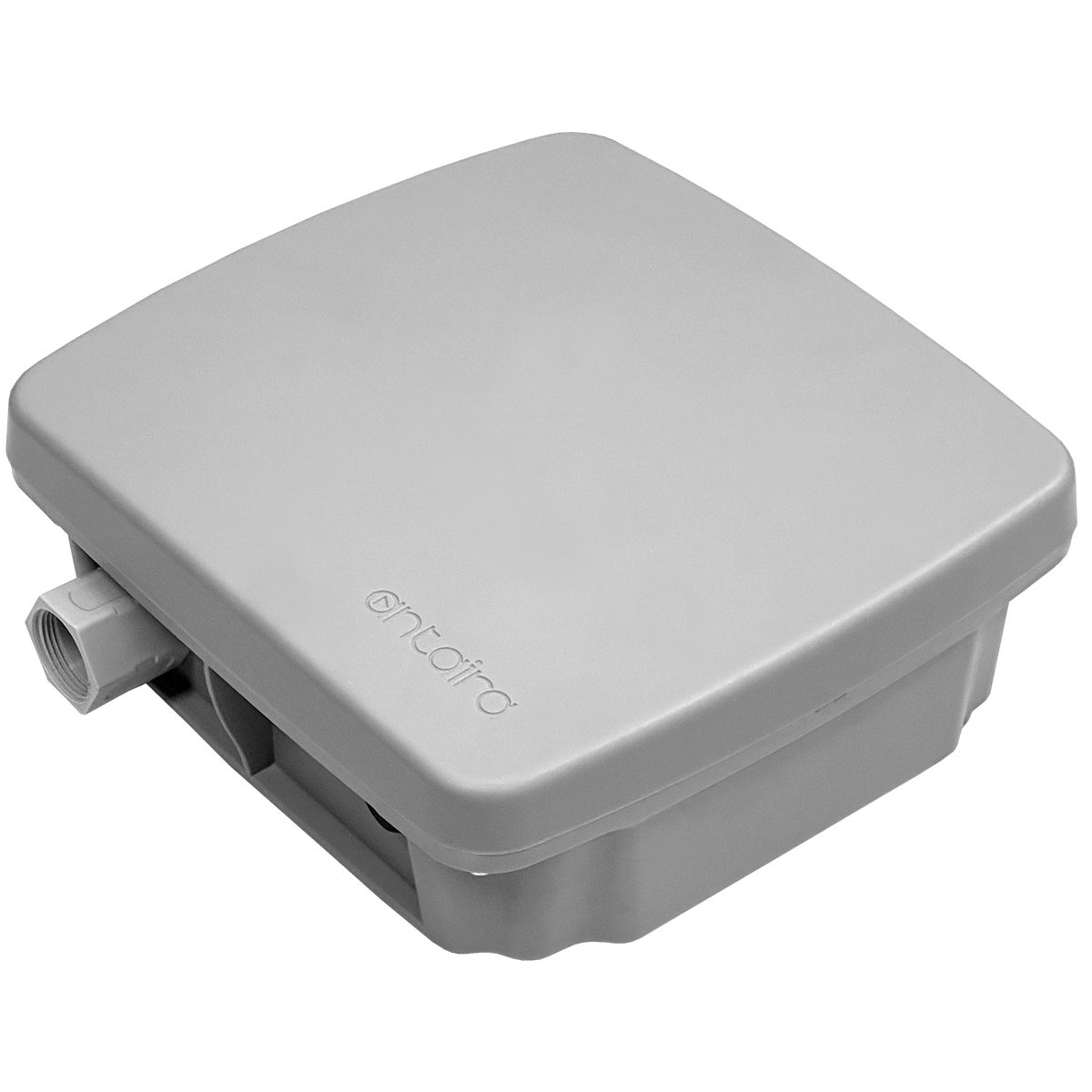

Antaira Technologies' AIROLINX-GOMAX-BASE-IP67-T is an outdoor, IP67-rated, wireless bridge to be used with the optional Airolinx Go MAX Kit (AIROLINX-GOMAX-KIT-IP67-T). Use the Base unit with one or more optional Go MAX kits to create PtMP Networks out of PtP Kits. Purpose-built for Security and Intelligent Transportation Systems (ITS) deployments where fast installation, predictable performance, and low total cost are critical.
Features
- Base Unit designed to create PtMP Networks Out of AIROLINX-GOMAX-KIT-IP67-T PtP Kits
- USA / Canada Model
- Transparent Layer 2 Bridge Operation
(No Management IP Required to Pass Traffic) - Integrated 5GHz Dual-Chain Radio (2x2) with Wireless Speed Up to 2400Mbps
- Airolinx Go Studio Software for Discovery, First-Run Security, RF Optimization, Alignment, and Link Test Reporting
- Integrated 19dBi Panel Antenna Up to 2+ Miles
- Active 802.3at PoE Input
- Rugged IP67 Enclosure for Permanent Outdoor Installation
- Video-Grade Range 0.5~2+ miles (0.8~3.2+ km) Line-of-Sight for Consistent Higher Throughput *depends on country regulations*
- Longer Distance Will Result in Lower Throughput
- Operating Temperature: -40°C to 75°C (-40°F to 167°F)
- 5-Year Warranty
- Add additional AIROLINX-GOMAX-KIT-IP67-T Preconfigured Kits to Expand Wireless Network
Download

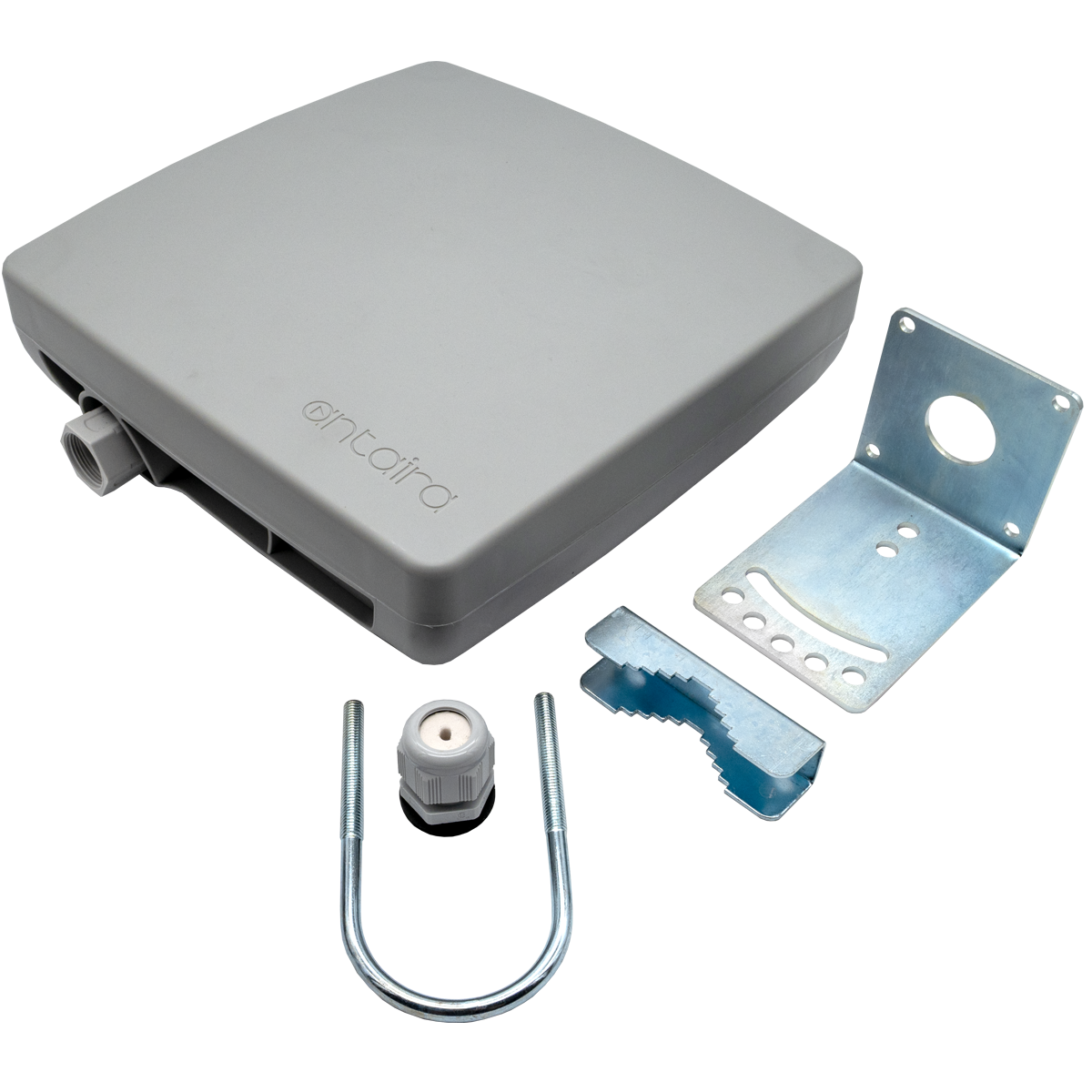

Included
Accessories
- What is the Antaira AIROLINX-GOMAX-BASE-IP67-T?
The AIROLINX-GOMAX-BASE-IP67-T is an outdoor IP67 Wi-Fi 6 base unit used with Airolinx Go MAX kits (AIROLINX-GOMAX-KIT-IP67-T) to create point-to-multipoint networks out of point-to-point kits.
- How many Go MAX kits can the AIROLINX-GOMAX-BASE-IP67-T connect?
The AIROLINX-GOMAX-BASE-IP67-T acts as a hub for connecting up to three AIROLINX-GOMAX-KIT-IP67-T kits.
- How fast is the AIROLINX-GOMAX-BASE-IP67-T?
The AIROLINX-GOMAX-BASE-IP67-T uses an integrated 5GHz dual-chain (2x2) Wi-Fi 6 radio with wireless speed up to 2400Mbps.
- What is the range of the AIROLINX-GOMAX-BASE-IP67-T?
The AIROLINX-GOMAX-BASE-IP67-T has a range of up to 2+ miles ,based on a clear line-of-sight, using its integrated 19dBi panel antenna.
- How is the AIROLINX-GOMAX-BASE-IP67-T powered?
The AIROLINX-GOMAX-BASE-IP67-T is powered by active IEEE 802.3at PoE. It is a USA/Canada model.
- Do I need to configure the AIROLINX-GOMAX-BASE-IP67-T before installing it?
Yes. The AIROLINX-GOMAX-BASE-IP67-T serves as the central base station for point-to-multipoint (PtMP) networks, connecting multiple remote sites. Airolinx Go Studio software is required to configure the base unit, establish PtMP connections, and assist with antenna alignment and link testing.
- What is Airolinx Go Studio?
Airolinx Go Studio is Antaira's software for the AIROLINX-GOMAX-BASE-IP67-T. It provides Layer 2 discovery, first-run security, RF optimization, antenna alignment and link test reporting, even when devices ship without a management IP.
- Is the AIROLINX-GOMAX-BASE-IP67-T rated for outdoor use?
Yes. The AIROLINX-GOMAX-BASE-IP67-T uses a rugged IP67 enclosure for permanent outdoor installation and is rated -40°C to 75°C (-40°F to 167°F).
- What applications is the AIROLINX-GOMAX-BASE-IP67-T built for?
The AIROLINX-GOMAX-BASE-IP67-T is purpose-built for security and Intelligent Transportation Systems (ITS) deployments where fast installation, predictable performance and low total cost are critical.
- Where can I buy the Antaira AIROLINX-GOMAX-BASE-IP67-T and what warranty does it have?
The AIROLINX-GOMAX-BASE-IP67-T is sold at antaira.com and through Antaira's authorized distributors, and it carries a 5-year warranty. Antaira also offers a 30-day evaluation program and volume pricing requests through antaira.com.
