Introduction

Since 2022, the global oil and gas industry remains one of the world's largest sectors, with a global revenue of approximately $5 trillion. This oil and gas industry is structured into three main segments: upstream, midstream, and downstream, all of which rely on a complex infrastructure.

Upstream operations involve activities such as exploring, drilling, and extracting crude oil and natural gas from underground reservoirs. Midstream operations focus on the transportation, storage, and processing of these resources after extraction but before they reach end-users through pipelines or refineries. Downstream operations include the refining of crude oil and natural gas from pipelines into various petroleum products like gasoline, diesel, and jet fuel, as well as the distribution and marketing of these petroleum products to end-users, including consumers and industries.

Transmission and distribution pipelines are crucial mechanisms in the oil and gas industry, offering an efficient, cost-effective, and safe way to transport processed or unprocessed raw materials to downstream refineries. Ensuring the pipelines operate efficiently and safely is of utmost importance to pipeline companies. Prompt notification and resolution of any issues with existing pipeline are essential to maintain uninterrupted operations.

To meet these demands and exceed customer expectations, Antaira provides several features tailored to support the unique business needs of the oil and natural gas pipelines and transportation industry. This white paper will delve into the specific challenges faced by oil and gas pipeline systems and how Antaira can help overcome these challenges, enhancing the gas pipeline industry space and transportation services in an intelligent and sustainable manner.

Enhancing Network Infrastructure for Superior Reliability and Availability

For the oil and gas industry, ensuring the safety and reliability of pipelines and supporting infrastructure is of utmost importance. Managing and monitoring these pipelines presents significant challenges due to their long distances, extensive geographical reach, exposure to harsh environmental conditions, and limited access to communication and power resources.

In this regard, Antaira offers a range of various industrial networking solutions and Ethernet switches tailored for the oil and gas sector. These industrial networking solutions and switches, whether unmanaged or managed, are designed to operate within a wide temperature range of -40°C to 75°C, ensuring durability in harsh environments. Options include an IP30 and IP67 ingress protection enclosure, safeguarding against solid particles and liquids. Additionally, these rugged switches have the option for a protective layer called conformal coating to shield electronic components and circuit boards from the environmental impact, damage and chemical corrosion.

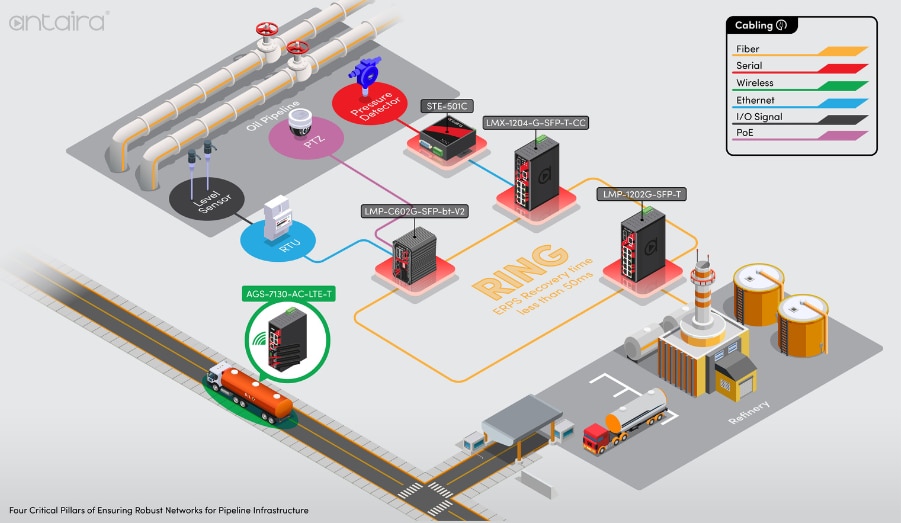

Antaira's industrial managed switches include the G.8032 ERPS (Ethernet Ring Protection Switching) feature, which provides rapid protection and recovery for Ethernet ring topologies. This ensures high availability and resilience for critical networks, with a sub-50ms protection switching time that allows for quick detection and recovery from link failures, maintaining uninterrupted network connectivity.

802.3bt PoE++ CAPABILITY WITH ROBUST SECURITY MEASURES

Protecting pipelines is a critical concern for the oil and gas industry, often requiring the installation of large quantities of cameras along the pipeline for monitoring and immediate action in response to issues. One commonly used pipeline camera type is the PTZ (Pan-Tilt-Zoom) camera, which requires significant power due to its motorized movement capabilities and additional features such as heaters, blowers, or IR illuminators.

Pipelines are typically located in remote areas with limited access to reliable power infrastructure. The adoption of PoE technology for oil pipelines, particularly Antaira’s industrial PoE switches with IEEE 802.3bt PoE technology, addresses these challenges by providing the necessary power supply for PTZ camera operations on pipelines.

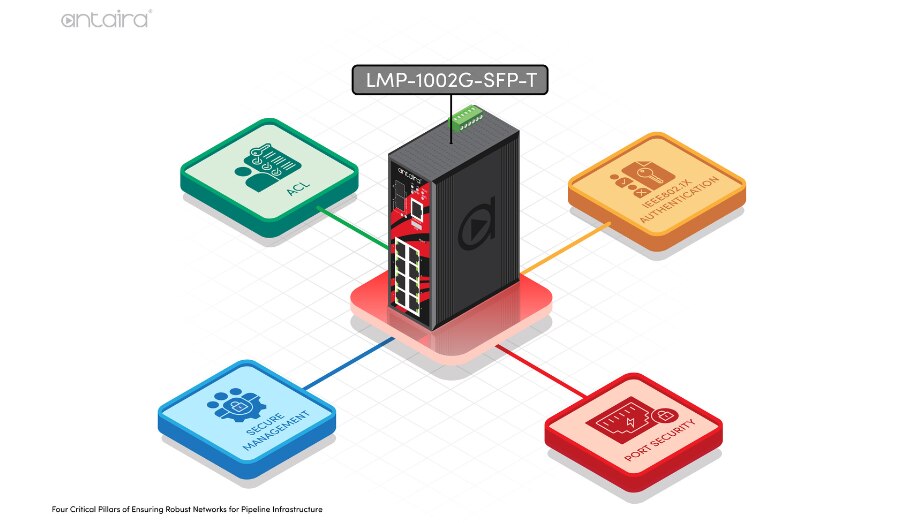

In addition to physical threats, pipelines are also vulnerable to cyber attacks that can disrupt operations or compromise sensitive data. Antaira offers several security features to prevent unauthorized access to devices. For example, ACL (Access Control List) rules can be configured on edge switches to determine access criteria, preventing unauthorized access to facilities.

Antaira also provides solutions for client access and network security. The 802.1X Network Access Control protocol requires client authentication by an authentication server before granting network access. Port Security feature allows administrators to limit wireless access points and the number of connected clients to each industrial Ethernet switch port, blocking future such wireless access points when unauthorized connections are detected.

IP-MAC binding further enhances access control by associating Ethernet switch ports, client IP addresses, MAC addresses, and VLAN IDs. Access is granted only when all criteria match, ensuring strict access control measures are in place.

Antaira offers customers a robust access control list security solution to safeguard their assets from malicious access attempts. Using ACL rules, Antaira ensures the protection of device access while utilizing features such as 802.1X Network Access Control, Port Security, and IP MAC Binding to establish comprehensive client access security measures.

Converting Serial Data to Ethernet Protocol

In the oil and gas industry, ensuring efficient and reliable pipeline operations is paramount. To achieve this, it's common to use serial sensors distributed along the pipeline network. These sensors continuously monitor parameters such as pressure, temperature, flow rates, and leak detection. The data collected by these sensors is then transmitted to the central control center using a Serial-to-Ethernet device. This real-time data enables proactive maintenance, early detection of anomalies, and swift response to any operational issues, ensuring the safety and integrity of the whole pipeline system and infrastructure.

Antaira offers Serial-to-Ethernet devices that support a variety of port combinations and functionalities, providing flexibility to meet the specific requirements of each application. Antaira's Modbus gateway products enable legacy MODBUS RTU/ASCII devices to operate on a MODBUS TCP network, while their Serial-to-Ethernet switch allows any serial device RS232/422/485 to connect to an existing Ethernet network.

Secure Wireless Remote Connectivity with IIoT Gateway

The Industrial Internet of Things (IIoT) gateway is a key component of our interconnected infrastructure. It seamlessly gathers critical information from various sources, including the aggregation switch, which consolidates data from sensors, devices, and machinery across the network. Once collected, this valuable data is efficiently transmitted to the central control center using a robust 4G LTE connection. This real-time data flow enables informed decision-making, proactive maintenance, and swift responses to operational events.

Antaira’s IIoT gateway offers more than just secure data transfer. It incorporates advanced networking features such as Virtual Private Network (VPN) tunneling and Network Address Translation (NAT) to ensure the security and integrity of data transmission.

The IIoT gateway establishes a VPN connection, creating an encrypted tunnel to safeguard data as it travels between the aggregation switch and the control center, protecting it from unauthorized access. NAT allows the gateway to mask internal IP addresses when communicating externally, enhancing security by preventing direct exposure of internal network details.

Furthermore, this gateway is designed to support communication using the MQTT (Message Queuing Telemetry Transport) protocol. MQTT is lightweight, efficient, and well-suited for IoT applications, facilitating efficient data exchange between devices and the control center, making it an ideal choice for IIoT deployments.

Comprehensive Network Management and Monitoring

Continuous operation of oil and gas pipelines is paramount. Maintaining uninterrupted flow requires diligent use of a Network Management System (NMS) to monitor the network status. In case of an issue, the system immediately notifies administrators, allowing prompt action to preserve pipeline integrity.

The NMS offers comprehensive monitoring and real-time notifications for devices supporting the SNMP protocol. It oversees network health, ensuring timely responses to anomalies.

Antaira’s NMS (a.NMS™) solution is based on the ISO FCAPS model, providing:
• Fault Management: Detects and addresses network faults.
• Configuration Management: Manages device settings.
• Accounting Management: Tracks resource usage.
• Performance Management: Monitors network performance.
• Security Management: Ensures robust security measures.

a.NMS™ constantly monitors connected devices. When issues arise, whether due to faults, performance degradation, or security breaches, it alerts users promptly, enabling proactive maintenance and safeguarding critical infrastructure.

ATEX/CID2 Certification in the Oil and Gas Sector

The midstream phase is a pivotal stage in oil and gas energy operations, situated between the upstream and downstream sectors. It primarily focuses on the processing, transportation, and storage of petroleum and natural gas. Midstream companies play a crucial role in converting the raw material of crude oil from oil fields into usable products for end-users.

Certification is crucial in this sector due to the handling of flammable substances and fossil fuels like oil and gas. Certifications ensure that electronic devices and materials used in these environments are safe and do not pose risks of sparks or heat sources that could lead to explosions.

Regulatory bodies often mandate adherence to safety standards, and certifications demonstrate compliance with these standards. C1D2 and ATEX certifications specifically mitigate risks associated with explosive gas atmospheres. Antaira's product line for the oil and gas industry is fully compliant with C1D2/ATEX certification.

Conclusion

Given the oil and natural gas' industry's immense economic significance and intricate infrastructure across upstream, midstream, and downstream segments, ensuring the reliability, safety, and efficiency of pipeline networks is paramount. Antaira's Antaira's comprehensive product solutions are positioned as key facilitators in overcoming these challenges. From industrial Ethernet switches engineered to endure harsh environments and guarantee uninterrupted operation to security features such as access control and network monitoring, Antaira offers a suite of solutions to enhance the safety, reliability, and efficiency of oil and natural gas liquids pipeline networks.

By prioritizing operational reliability, safety, and security, as well as efficiency and cost-effectiveness, Antaira's networking equipment solutions empower oil and gas pipeline operators to optimize their infrastructure, mitigate risks, and safeguard critical assets. Through a blend of cutting-edge technology and industry expertise, Antaira is dedicated to supporting the oil and gas industry in meeting its evolving network infrastructure needs and ensuring the sustainable transportation of vital resources.
