Fiber optic cables are today the fastest-growing transmission medium for industrial network expansions and new builds, particularly for applications requiring high bandwidth capacity, long transmission distances, and immunity to electrical interference. With this development has come a heightened focus on media converters capable of transforming Ethernet data signals into fiber optic signals needed for fiber optic transmission.

Media converters have been the reliable solution to connectivity issues since the dawn of networking, long before the widespread use of fiber. In this blog, we aim to enhance your understanding of these devices, their functions, and the various kinds available for your network, giving you the confidence to manage your network effectively.

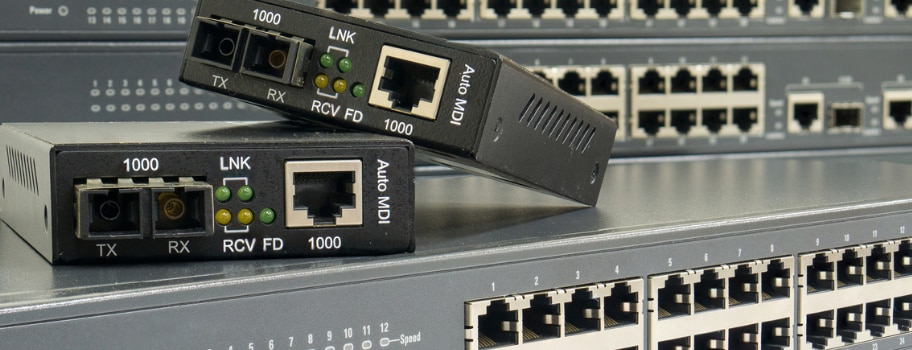

What is a Media Converter?

An industrial media converter operates at the OSI model's data link layer (Layer 2). It seamlessly converts Ethernet or other communication protocols from one media type to another, typically bridging the gap between UTP and fiber to ensure compatibility and integration. Many industrial media converters support gigabit ethernet, providing high-speed data transmission for demanding applications.

Media converters come in various form factors, supporting different protocols and data transmission rates from 10 Mbps to 10G. The FCU-6001-SFP+ is an example of a media converter that provides a wide range of compatibility with 10G/5G/2.5G/1G Copper to 10GBASE-X SFP+ Media Converter.

This versatility empowers you to choose the suitable converter for your specific needs, whether unmanaged or managed, chassis-based for enterprise-class networks, slide-in converters for high-density conversion, or standalone units for space-sensitive environments.

Using fiber optic cabling, media converters are commonly used in pairs to connect two network devices with copper ports over long distances. For example, in a surveillance application, you can use a pair of media converters to monitor video from a remote IP camera at a control station located farther than the 100-meter limit of copper cables. First, a patch cord runs from the camera to a copper-to-fiber media converter that converts the Ethernet signal into light pulses. Then, the same media converter is connected to a long fiber optic cable to send the signal to the receiving media converter near the control station. The receiving unit converts the optical signal to Ethernet, allowing you to view the video on a connected PC or monitor.

Besides extending LAN distances, there are several other benefits to media converters.

· Media converters eliminate the need for costly, time-consuming infrastructure overhauls by enabling administrators to migrate a local network to fiber. This cost-saving benefit ensures that your network operations remain financially secure, giving you peace of mind when managing your network.

· Media converters are crucial in connecting multiple LANs to form one extensive campus network. This capability empowers you to expand your network and enhance your operations, putting you in control of your network's growth and efficiency.

· With 1550 nm optics, media converters can extend the LAN's reach over single-mode fiber for up to 160 kilometers.

· Media converters reduce network operating costs by assisting in troubleshooting and remotely configuring network equipment in remote locations.

· Media converters protect data from electromagnetic interference (EMI) that can cause data corruption over copper links.

· Media converters allow link speeds from 10 Mbps to 100 Mbps or from 100 Mbps to 1000 Mbps.

· Some media converters have a link fault feature that enhances network reliability by detecting and responding to link failures.

· Media converters can be equipped with power over Ethernet, eliminating the need for a local AC power circuit. PoE media converters are used with security cameras, IP phones, and WAPs. The link fault pass feature ensures seamless operation during network interruptions, maintaining system functionality.

Media Converter Types

As mentioned earlier, media converters come in multiple forms and designs. Antaira offers managed and unmanaged media converters to extend copper to fiber, multi-mode to multi-mode, and multi-mode to single-mode. Fiber solutions facilitate long-distance network applications, providing superior data security and immunity to electromagnetic interference. Advanced technology, such as plug-and-play, enhances these media converters' ease of use and functionality.

1. Copper-to-fiber media converters connect devices using copper cables (such as Ethernet cables) to devices using fiber optic cables. They are frequently used to connect devices situated at a considerable distance from each other or to extend a network's reach. PoE media converters provide power and data to remote devices like IP phones, security cameras, and access points, ideal for areas without easy access to power.

2. Serial-to-fiber media converters connect devices that use serial communication (such as RS-232 or RS-485) to devices that use fiber optic cables. They are commonly used in industrial control systems and other serial communication applications. Many media converters feature an SFP slot, allowing for flexible network expansion and compatibility with various fiber types.

Two primary fiber types, single-mode, and multi-mode, are used in copper-to-fiber and serial-to-fiber media converters, each suited for different distances. Below are their key uses:

• Single-mode media converters connect devices using single-mode fiber optic cables for long-distance communications. They are often used in telecommunications networks and other applications where the devices are located far apart. These converters are ideal for long-distance network applications, connecting remote locations to core networks.

• Multi-mode media converters connect devices using multi-mode fiber optic cables designed for shorter-distance communications. They are often used in industrial control systems and other applications where the devices are closer.

Media Converters with PoE

Media converters incorporating PoE are classified as Power Sourcing Equipment (PSE). That’s because PoE media converters act similarly to PoE injectors and provide conversion from fiber to copper cable. For remote applications, it is common to send data transmission over fiber and supply power at the remote site from a local power source, such as a light post or solar panel. The solar application would have a battery bank that supplies on average 24VDC, which will benefit from the DC-to-DC power boost feature found in the Antaira low-voltage input series products that operate from 12VDC to 55VDC power input. The PoE media converters supply the needed DC power to security cameras, Wireless Access Points, and VoIP phones on one cable. Only the power required by the PD will be supplied by the PoE media converter, which automatically negotiates with the PD.

Antaira's industrial-grade PoE media converters, including the IMP-C1000-SFP-T, IMP-C1000-SFP-BT-T, and IMP-C1000-SFP-BT-24-T, are a testament to our innovation and forward-thinking approach to industrial networking solutions. The bt models support IEEE 802.3bt high power PoE, delivering up to 90W to power connected devices such as LED lighting, HD monitors, occupancy sensors, and PTZ IP cameras.

What Sets Antaira Apart?

Antaira Technologies stands out in the media converter market by providing advanced, reliable solutions that enhance connectivity across diverse industrial applications. Notable advantages include:

Power Remote Reset Technology (PRRT): This patented technology enables users to remotely reboot the media converter and reset connected powered devices (PDs) at distant or hard-to-reach sites.
•Remote Downtime Reduction:Shortens device downtime by allowing resets from a nearby connected site.
•Wide Area Support: Ideal for teams managing large geographical areas with remote devices.
•Simple Activation: PRRT can be activated via the DIP switch on the front panels of both the Antaira bt PoE media converter and bt industrial switch.
•Reboot Methods: Reset can be triggered by disconnecting the fiber cable or shutting off data for three seconds.

Commercial vs. Industrial Media Converters

Commercial-grade "non-hardened" media converters are made for standard data centers or office settings with controlled environments not subject to wide temperature ranges, moisture, vibration, or shock.

Antaira's industrial media converters can withstand extreme temperatures and harsh industrial environments in automation, building automation, oil and gas processing, and transportation. Many Antaira media converters are housed in metal, DIN rail-mountable cases offering IP30 protection and redundant power and are resistant to high shock and vibration. This makes them a perfect fit for demanding industrial networks.

In the commercial media converter offering, the EMC "Ethernet Media Converter" Series is suitable for applications that require media conversion from Ethernet to Fiber in an 0°C to 50°C (32°F to 122°F) operating temperature range environment. Compatible with the Unmanaged Universal Media Converter Racks in AC power (FCU-RACK16-AC / FCU-RACK16S) or DC power (FCU-RACK16-DC) options, the racks support up to 16 Media Converters respectively. The commercial-rated media converters provide a link to your industrial application at the head end. Choose from a wide variety of options including port interface, fiber type, distance, wavelength, and connector type.

Media converters are vital in extending LANs, converting link speeds and fiber modes, and using legacy infrastructure. Contact the Antaira technical support team to discover how to fully leverage industrial media converters for a more reliable, cost-efficient network.
